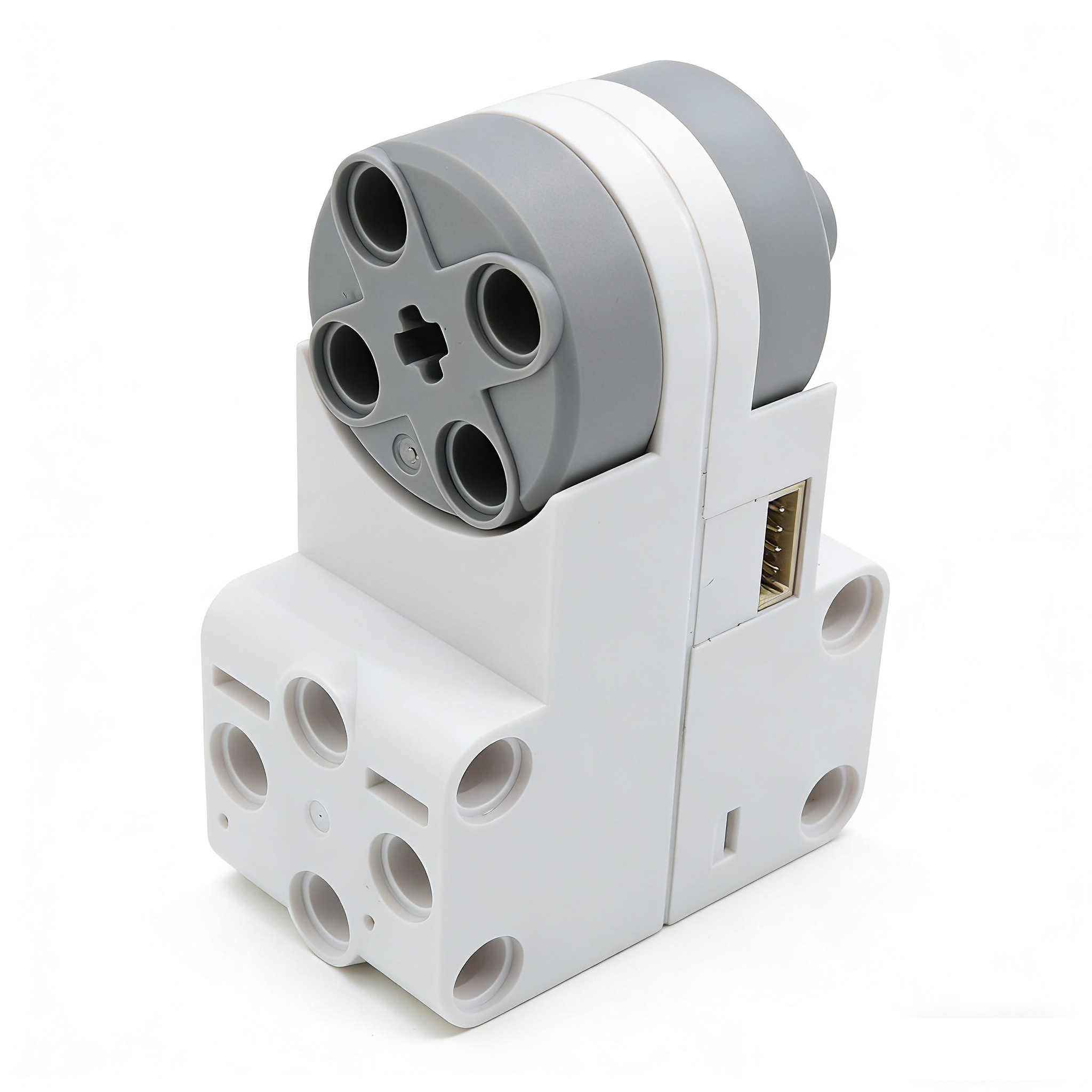

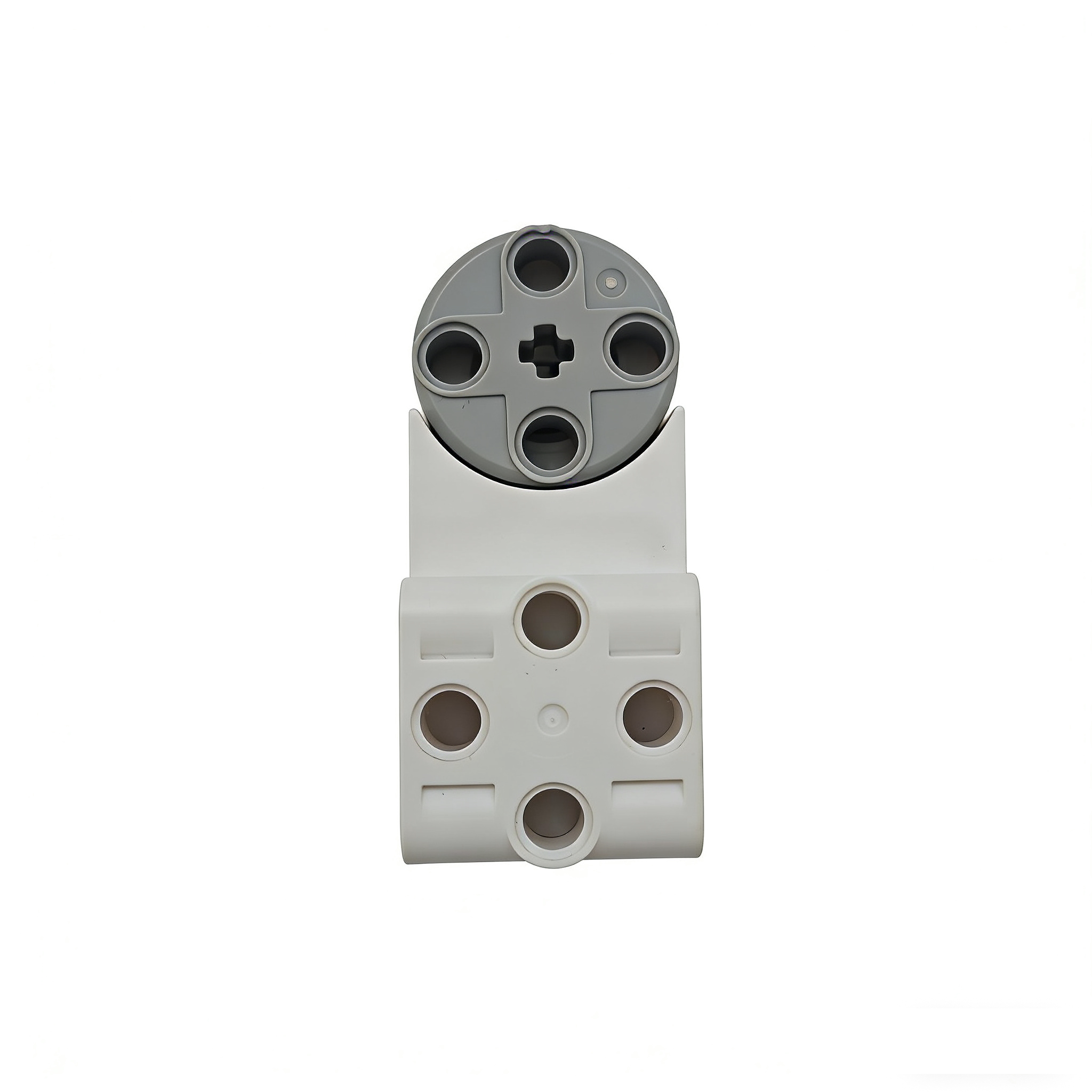

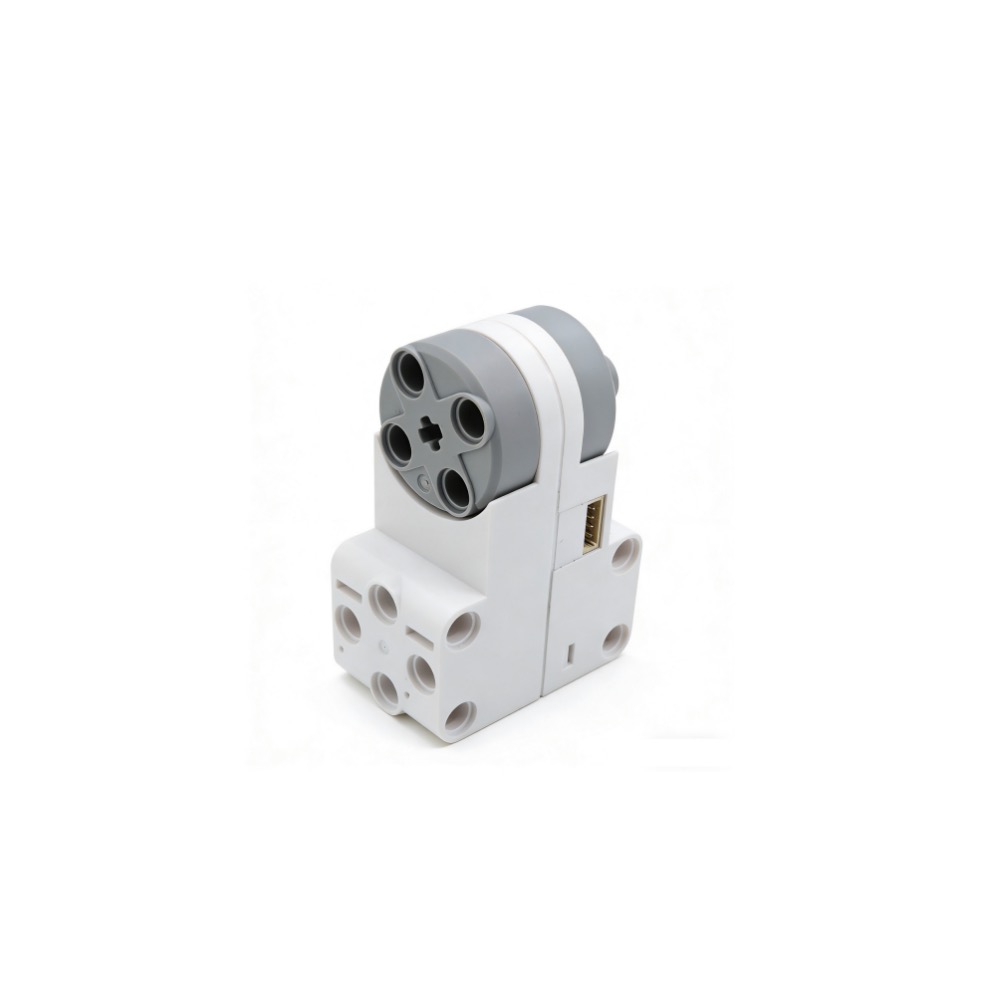

3×7×5 LEGO-Compatible Servo
$4.50
Compact & High-Precision Servo: Designed for LEGO small block robotics and maker projects, offering stable performance in educational kits.
Control & Interface: PWM communication supported; 1500μs neutral; pulse width 500–2500μs; signal voltage 4–5.5V.
Performance Specs: Rated torque 0.7 kgf·cm; stall torque ≥3.0 kgf·cm; max lifting load ≥1.2 kgf·cm; no-load speed ≤0.22 sec/60°.

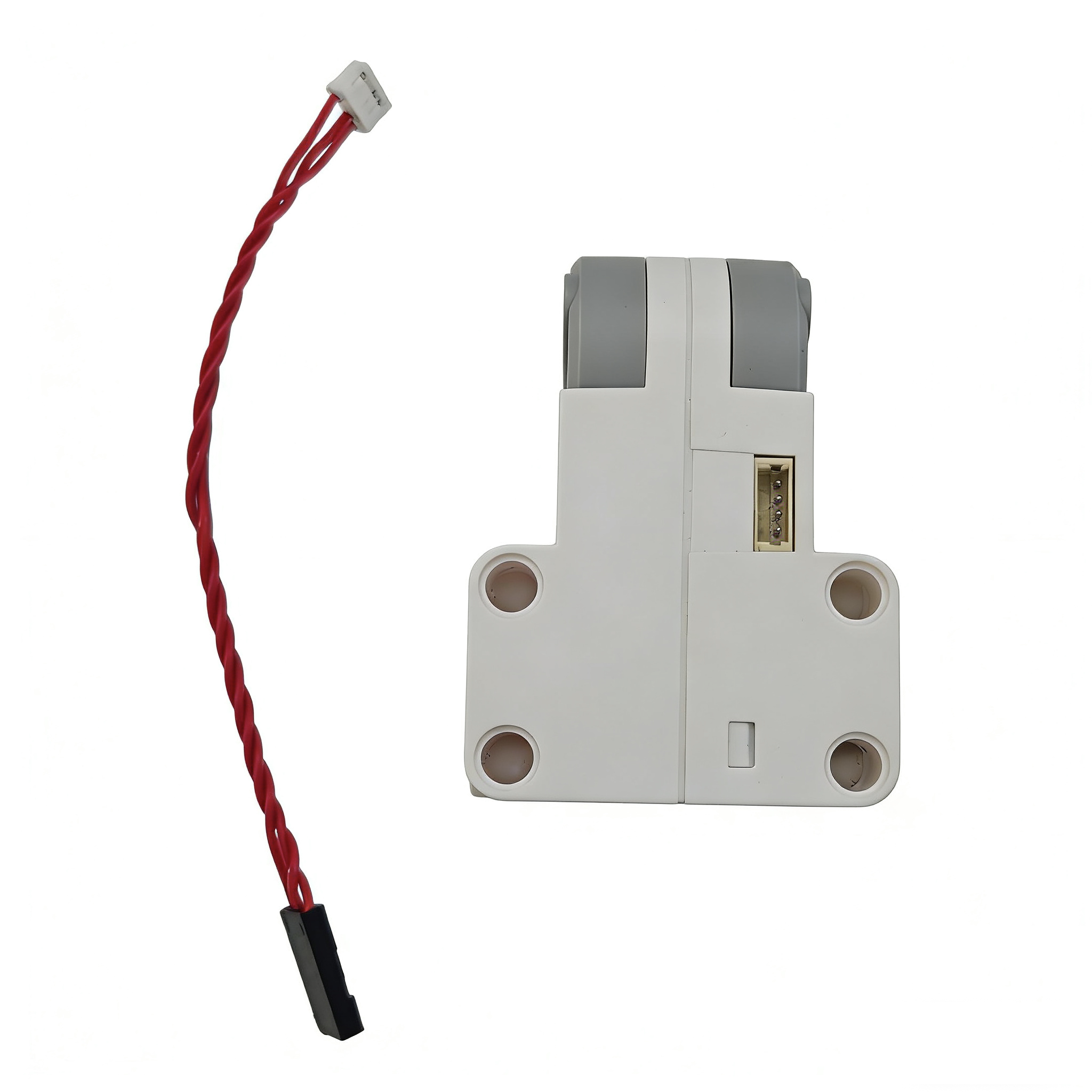

Durable Construction: Plastic case and gears, iron-core motor, linear Hall angle sensor, JST 1.5 4-pin connector.
Protection & Compliance: Stall, overcurrent, overvoltage, and overtemperature protections; CE-RED & CE-EMC certified.
Operating Environment: -10℃~+40℃, ≤90% RH; storage -20℃~+60℃, ≤90% RH; lifetime ~96 hours under standard test cycles.
